Escher M80P Mixer Bowl Problems – Splitting, Cracking & Leaking

About This Site

This site documents problems experienced with the Escher M80P spiral mixing bowl. The Escher M80P is a commercial-grade spiral mixer used in professional and artisan bakery settings.

This page was created to provide an honest, factual record of issues encountered. Where a statement reflects a personal view rather than a verifiable fact, it is clearly labelled Opinion. Verifiable observations are labelled Fact.

If you have experienced problems with an Escher M80P, you are welcome to submit your account using the form at the bottom of this page.

Documented Issues

Bowl Splitting at the Base

FACT ▸ The stainless steel bowl on the M80P unit split apart at its base. The separation occurred at the weld seam joining the bowl body to the base ring. The split compromised the structural integrity of the bowl, rendering it unsafe for use.

FACT ▸ The failure occurred during normal operation of the mixer, within the machine's stated capacity. The bowl was not subjected to impact, overloading, or any use outside its intended purpose.

OPINION ▸ In my personal view, a bowl failing at a weld seam under normal operating conditions suggests the weld quality or material specification may be inadequate for the stresses involved in commercial mixing. I believe this is a product defect rather than user error.

OPINION ▸ I consider a bowl splitting at the base during normal use to be a potential safety hazard, as fragments or dough could be expelled and hot or heavy material could be released unexpectedly. I would not use the machine again until the bowl has been replaced and the cause investigated.

Manufacturer's Response & Correspondence

The following is a factual account of correspondence with Escher Mixers S.r.l. regarding this issue. Direct quotations are reproduced accurately. Interpretations are clearly labelled as opinion.

FACT ▸ The Escher M80P mixer (serial number 13258) was purchased new from RF Bakery in April 2022. The bowl began showing structural failure approximately 4 years after purchase. The initial contact to Escher Mixers was made on 6 May 2026. No response was received for approximately two weeks.

Owner - Langley Bakery To: [email protected] · 6 May 2026 M80P Mixer – Bowl splitting apart.

I own a bakery in Langley, BC, Canada. I purchased an M80P from RF Bakery in April 2022. We started to notice the bottom of the bowl becoming uneven a little while ago and now it's splitting apart and getting worse. Water and dough now leak from the bottom.

I have contacted RF Bakery — they say a new bowl will be over $12,000 CAD and a new mixer will be over $17,000 CAD. I am reaching out to you so we can hopefully find a better solution. This is only a 4-year old mixer. It should not be failing so soon. The serial number is 13258.

Escher Mixers S.r.l. — [email protected] 19 May 2026 R: M80P Mixer – Bowl splitting apart.

Please, could you please keep in contact with our Representative RF Bakery?

Escher Mixers S.r.l. — [email protected] 20 May 2026 R: M80P Mixer – Bowl splitting apart.

The clearance between the bowl and the system is designed to prevent excessive bowl movement and settled in our factory. If the distance between the bowl and the thrust supports is too large, very stiff doughs can allow excessive movement of the bowl on its base during operation.

The thrust support adjustment is intended precisely to limit abnormal bowl movement under heavy load conditions.

"The bowl was not defective" — the bottom of the bowl is becoming damaged not in one day but in a long time without any action to adjust the clearance between the bowl and the thrust supports. This caused the final condition of the bowl.

The thrust supports must be regularly checked to maintain the correct setting and also because the system is subject to wear. At the first appearance of minimum defect in the bottom of the bowl you should have called immediately RF Bakery.

It is possible to replace only the bowl or to repair it.

FACT ▸ The maintenance section of the manual supplied with the Escher M80P references only belt maintenance. It does not mention thrust supports or thrust support adjustment as a maintenance requirement. At no point during any service visit were thrust supports raised as requiring attention or adjustment.

OPINION ▸ In my view, if thrust support adjustment is a critical maintenance requirement necessary to prevent bowl failure, it should be clearly documented in the maintenance manual supplied with the machine, and should be included in the authorised service representative's routine maintenance procedure. Neither was the case here. I do not accept that the bowl failure was caused by operator or owner negligence.

Replacement Costs Quoted

FACT ▸ The following costs were communicated during correspondence. All figures are in Canadian dollars and do not include taxes, freight, or labour unless stated.

Item	Initial Quote (CAD)	Escher "At Cost" Offer (CAD)
Replacement bowl only	$11,615 – $12,000+	$7,750
Replacement mixer (full unit)	$17,000 – $19,000+	Not offered
Labour & freight (bowl replacement)	Not included	Not included

OPINION ▸ Escher's offer to supply replacement bowls "at cost" represents a reduction from the standard retail price but still requires affected owners to bear the full cost of a failure that, in my view, is attributable to a product defect. An offer to sell a replacement at cost — rather than provide a remedy at no charge — is, in my opinion, an implicit acknowledgement that a problem exists, while stopping short of accepting liability for it.

FACT ▸ Escher's initial response stated that the bowl could be repaired or replaced. Subsequently, the recommendation changed to replacement only — repair was no longer offered as a viable option. The discounted "at cost" bowl price was not communicated until after a new mixer had already been purchased. At the time the purchase decision was made, the price difference between a replacement bowl (over $11,000 CAD) and a complete new mixer was relatively small; additionally, the new mixer was available locally while a replacement bowl would have required shipping from outside the area. Given the documented progression of the split — worsening over a period of weeks with active dough and water leakage — waiting weeks for a bowl to be shipped was not a viable option. In these circumstances there were no practical good options.

Known Affected Units

FACT ▸ As of June 2026, at least one other bakery within the same network has been confirmed to have experienced the same bowl failure, with symptoms and machine age matching this case (approximately 4–5 years from new purchase). A number of further complaints are currently being investigated to determine whether additional units are affected.

Photographic Record — Progression of Damage

The following photographs were taken on four separate dates. Dates are taken directly from the image EXIF metadata recorded by the camera. They document the split worsening and dough and liquid leaking from the base over approximately three weeks.

Apr 2026

Split first observed

FACT ▸ A continuous hairline crack was observed running around the inside of the bowl at the junction between the bowl wall and the base. Early signs of seepage were visible on the underside at the base plate.

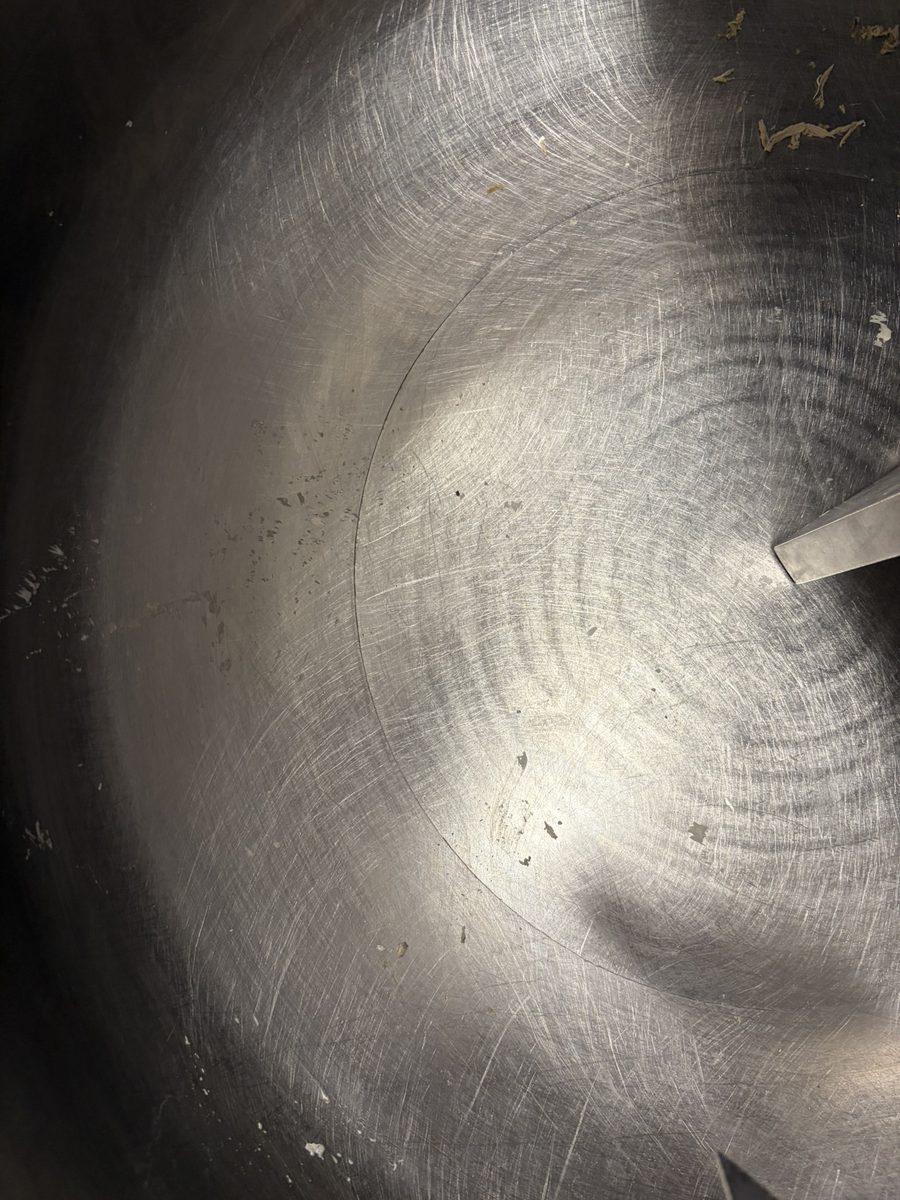

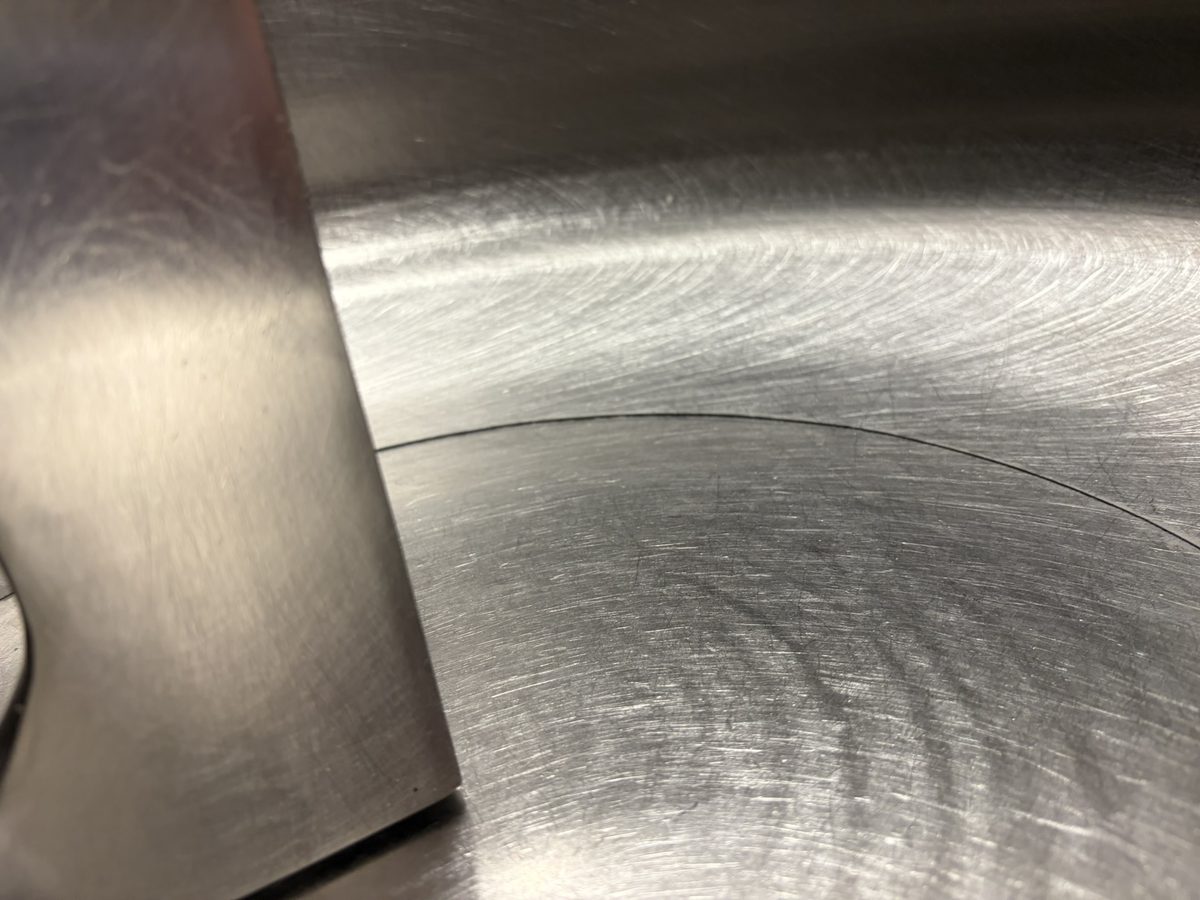

Interior — crack at base junction

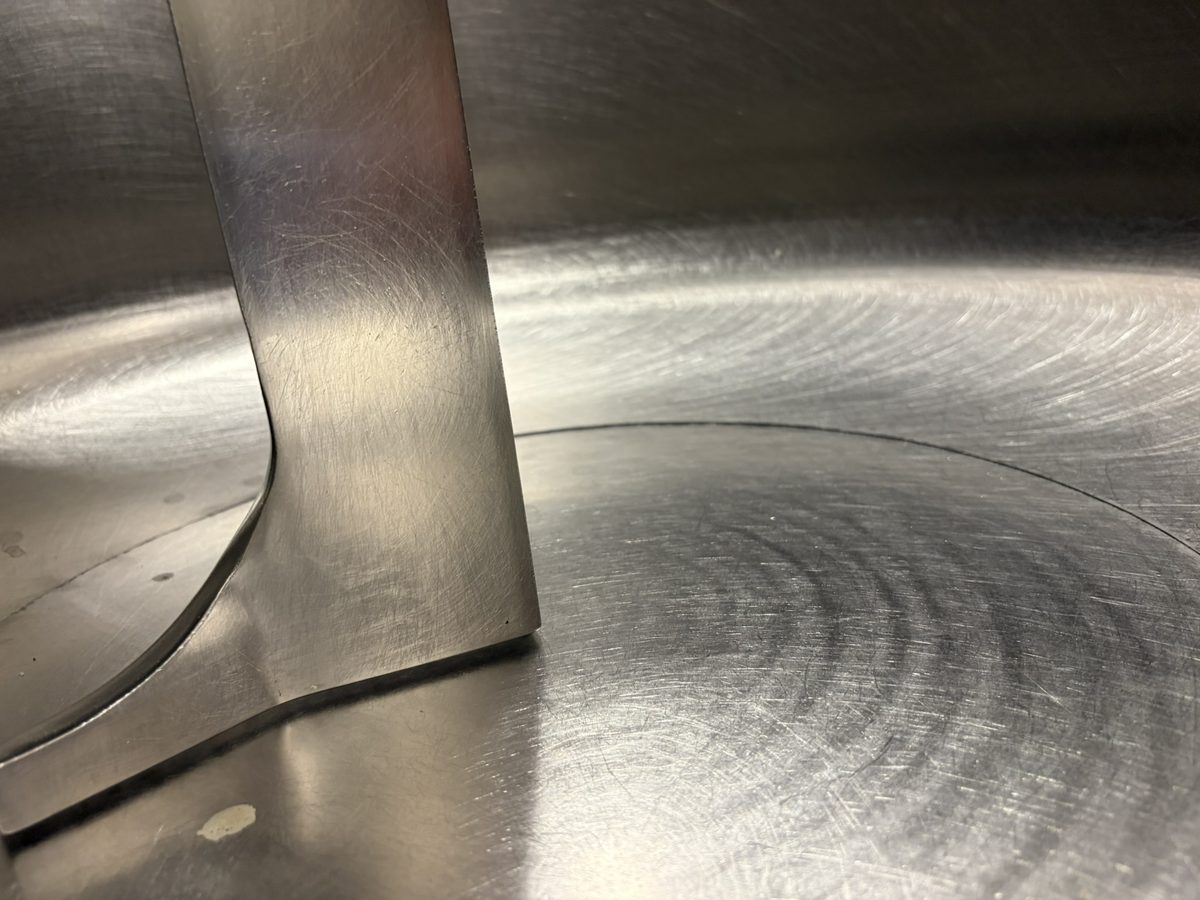

Interior — crack along base

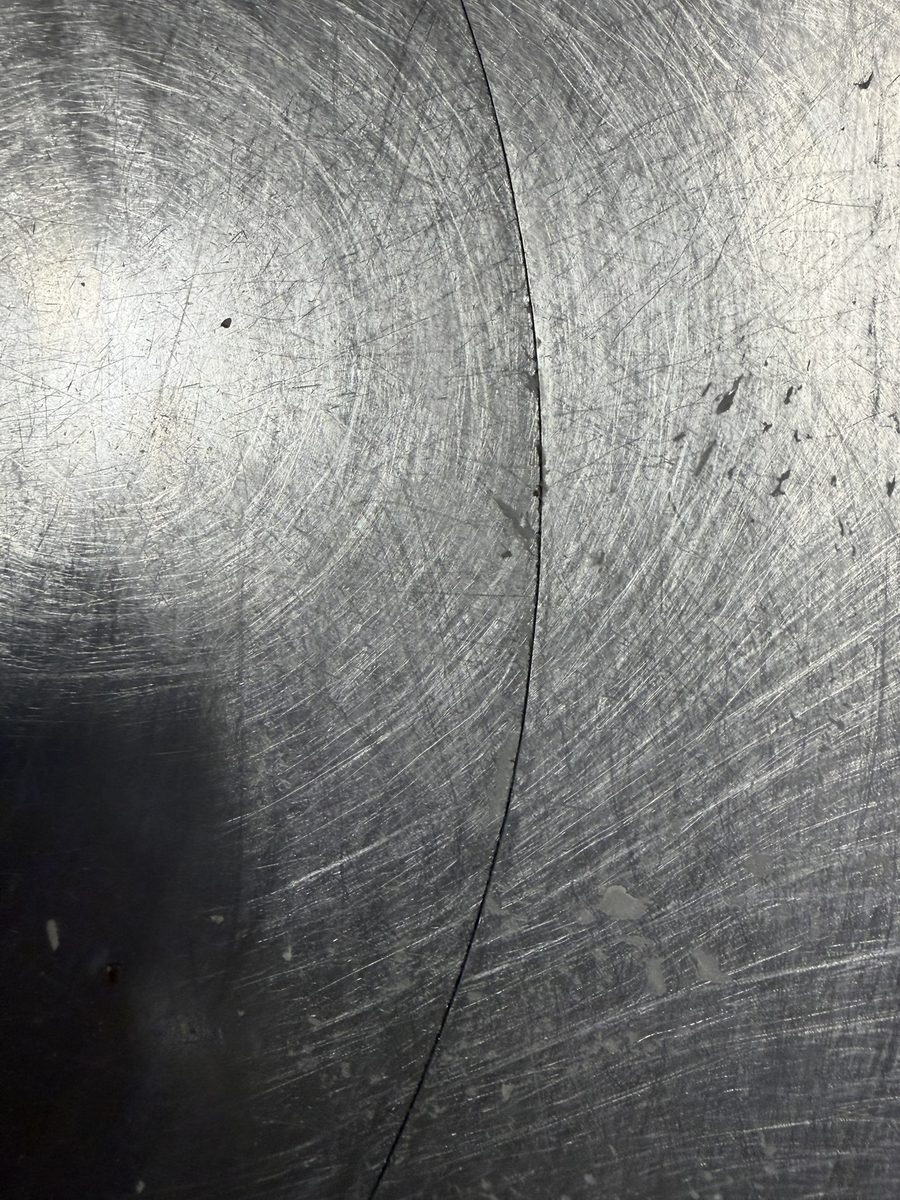

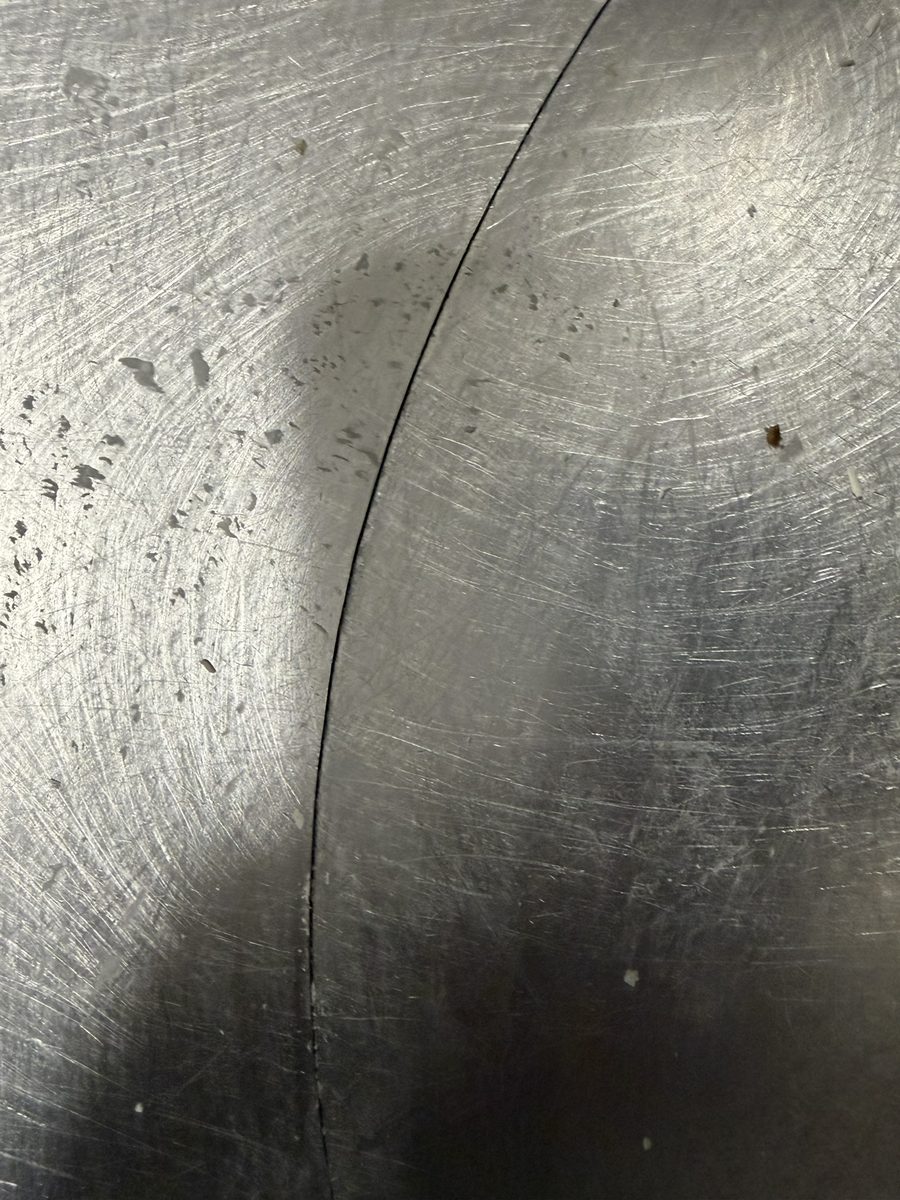

Close-up of split

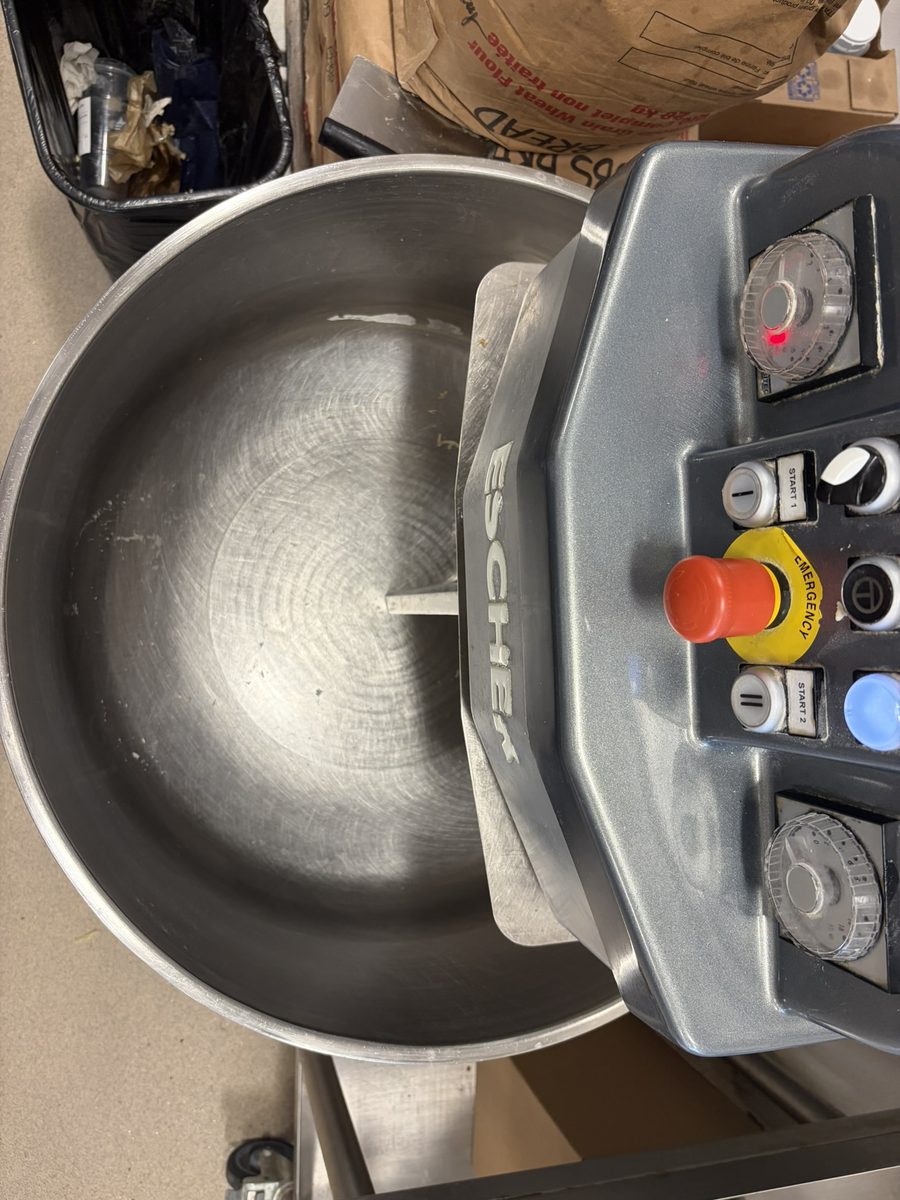

Machine overview

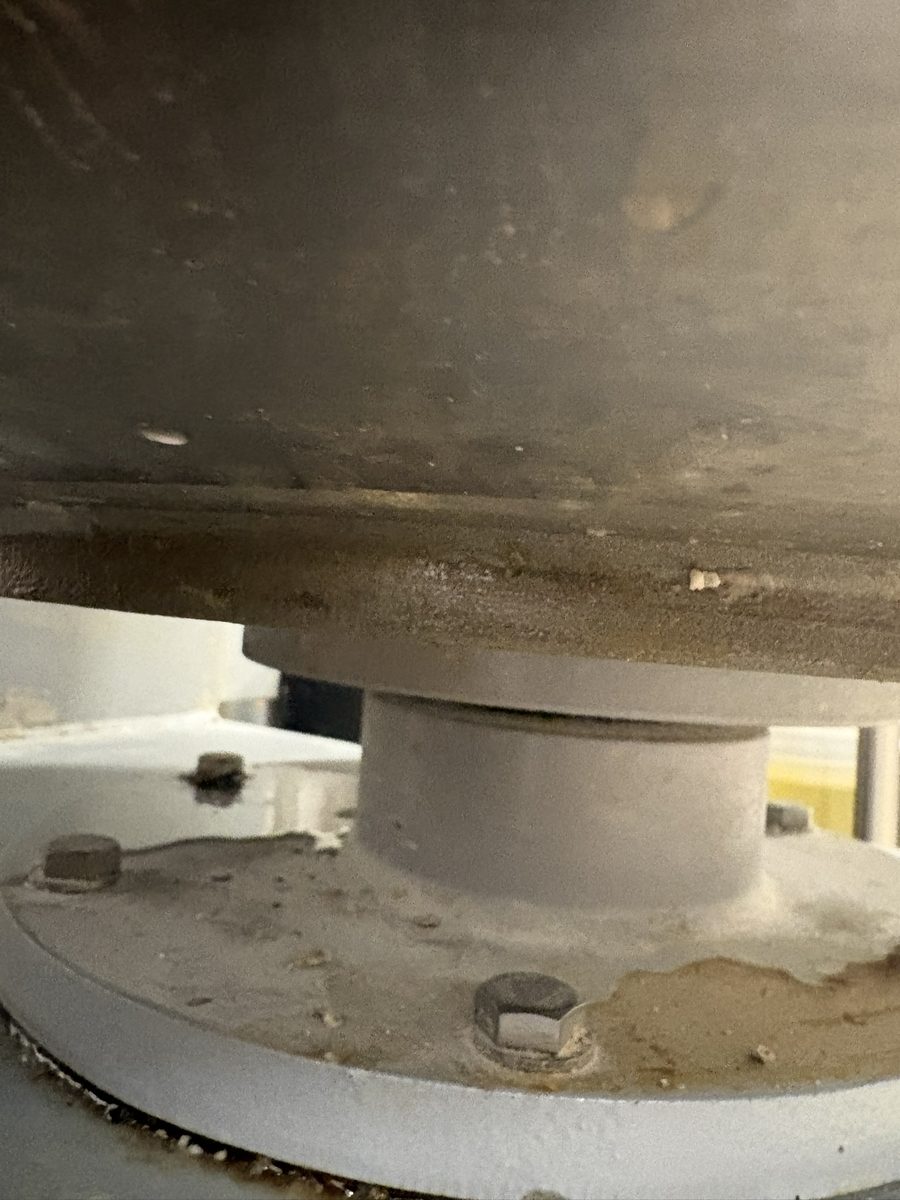

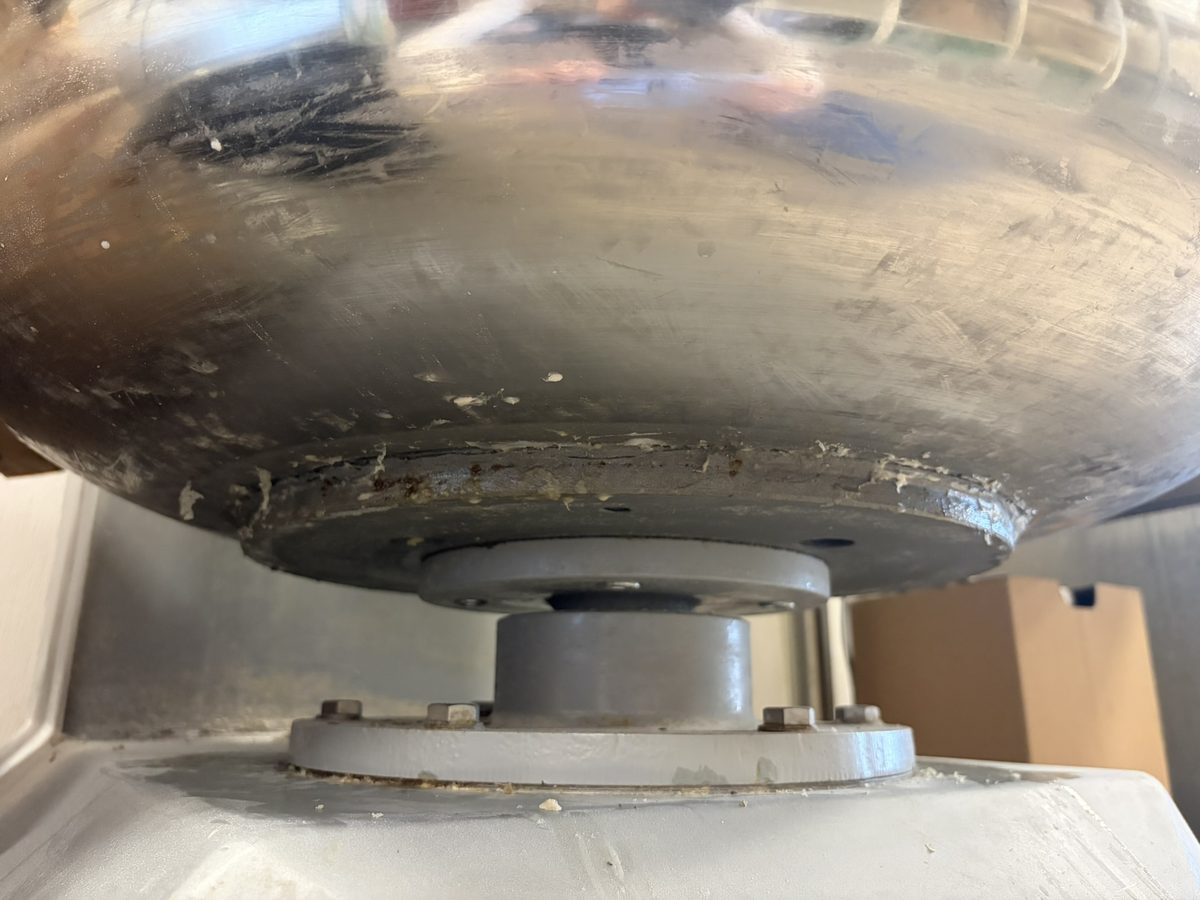

Underside — early seepage

Apr 2026

Dough leaking from base

FACT ▸ Dough was observed leaking through the split and accumulating around the outside of the base weld. Dried and hardened dough was visible around the full perimeter of the base ring.

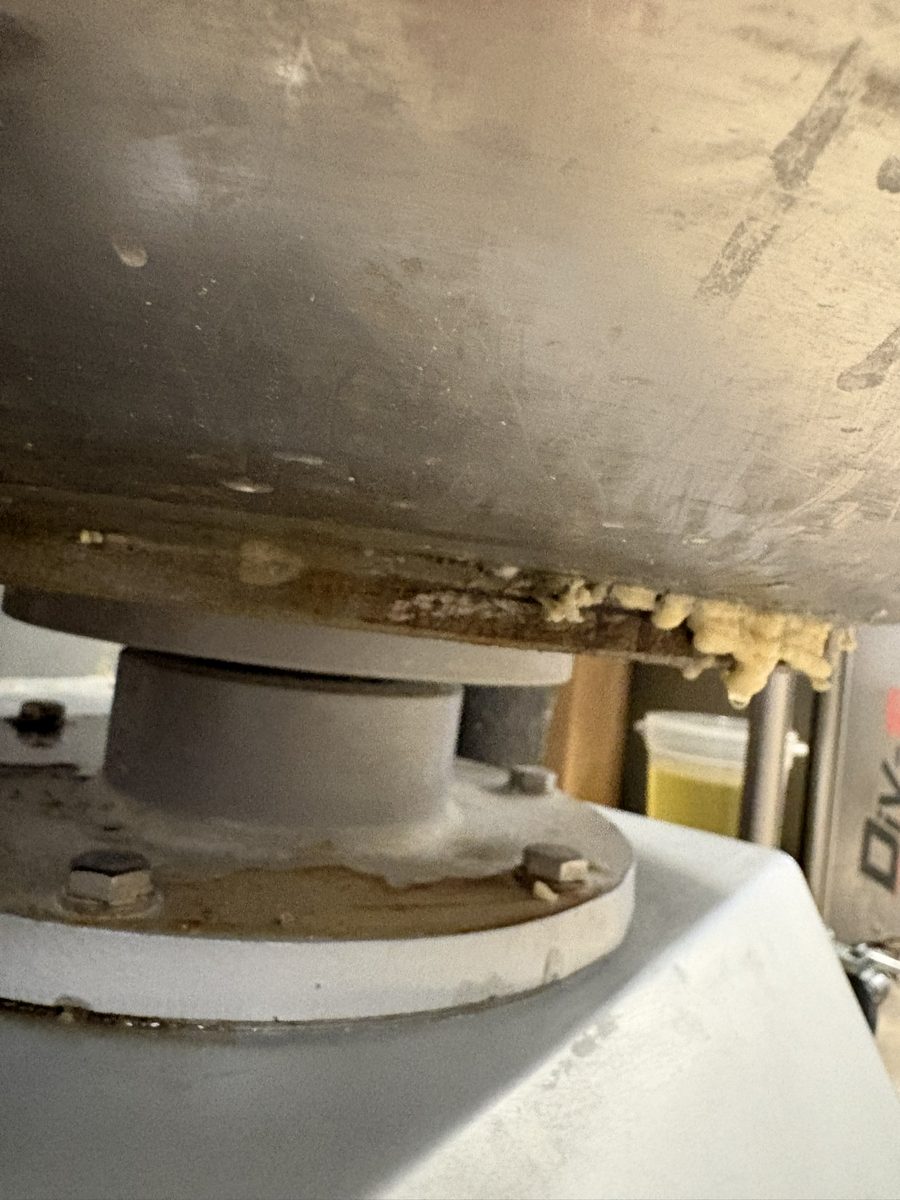

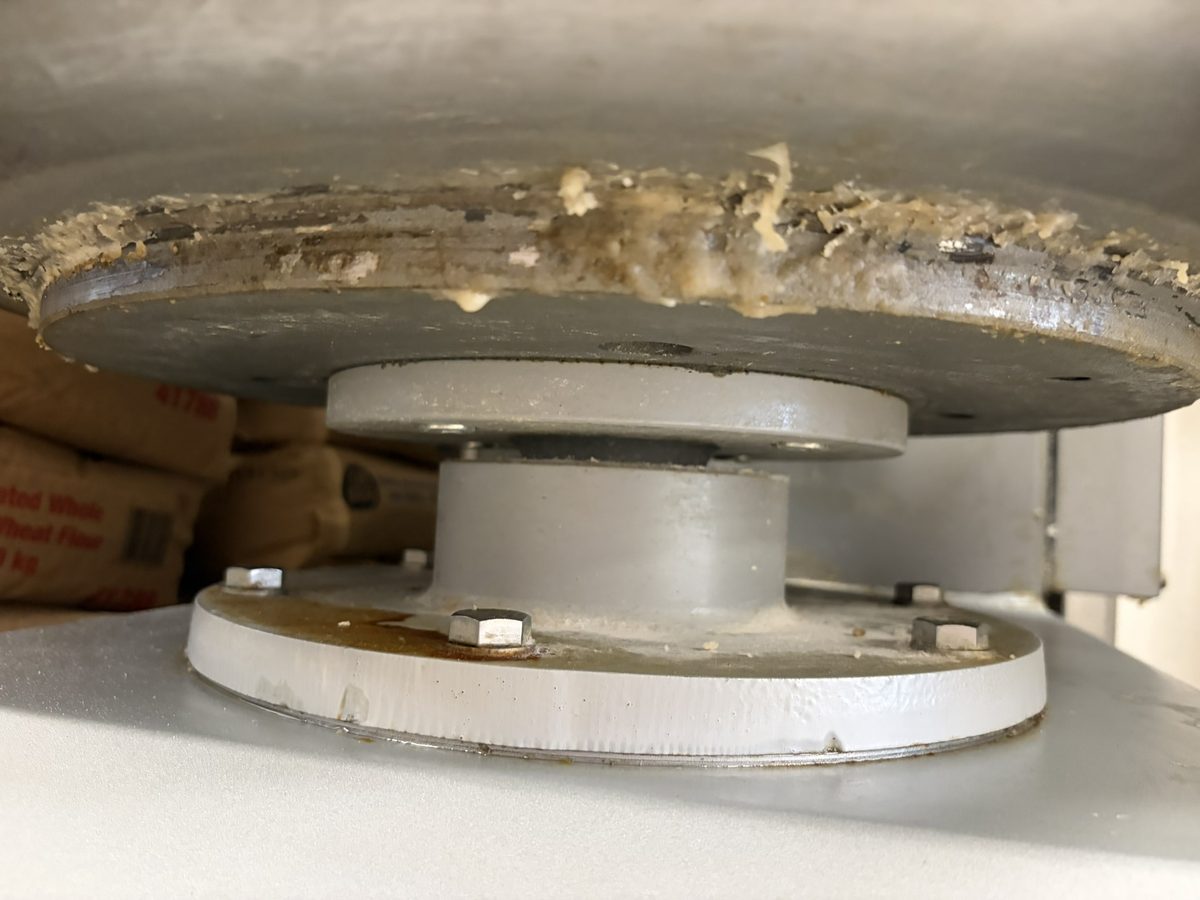

Underside — dough leaking at base weld

Underside — accumulation worsening

May 2026

Leakage significantly worse

FACT ▸ A heavy accumulation of dough and dried residue was present around the entire base ring, substantially greater than observed one week earlier.

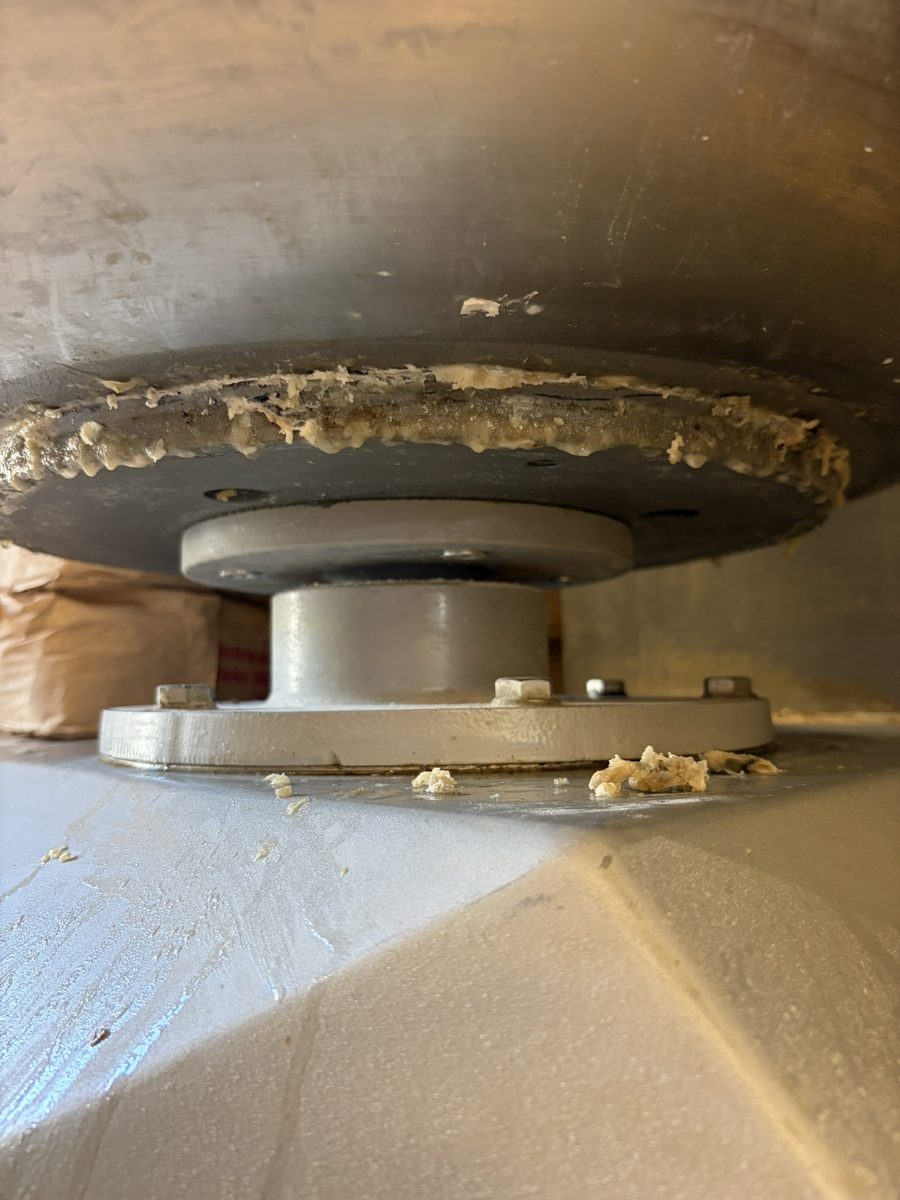

Underside — heavy dough buildup

May 2026

Split visibly wider; water and dough leaking

FACT ▸ The crack was visibly wider than first observed, now forming a clear open gap at the interior base junction. The underside showed severe dough accumulation along with water/liquid staining on the machine base plate.

OPINION ▸ In my view, the progressive widening of the split over approximately three weeks of normal use demonstrates structural failure, not a cosmetic defect. The leakage of both dough and water presents a hygiene risk and, in my opinion, makes the bowl unsuitable for continued food production use.

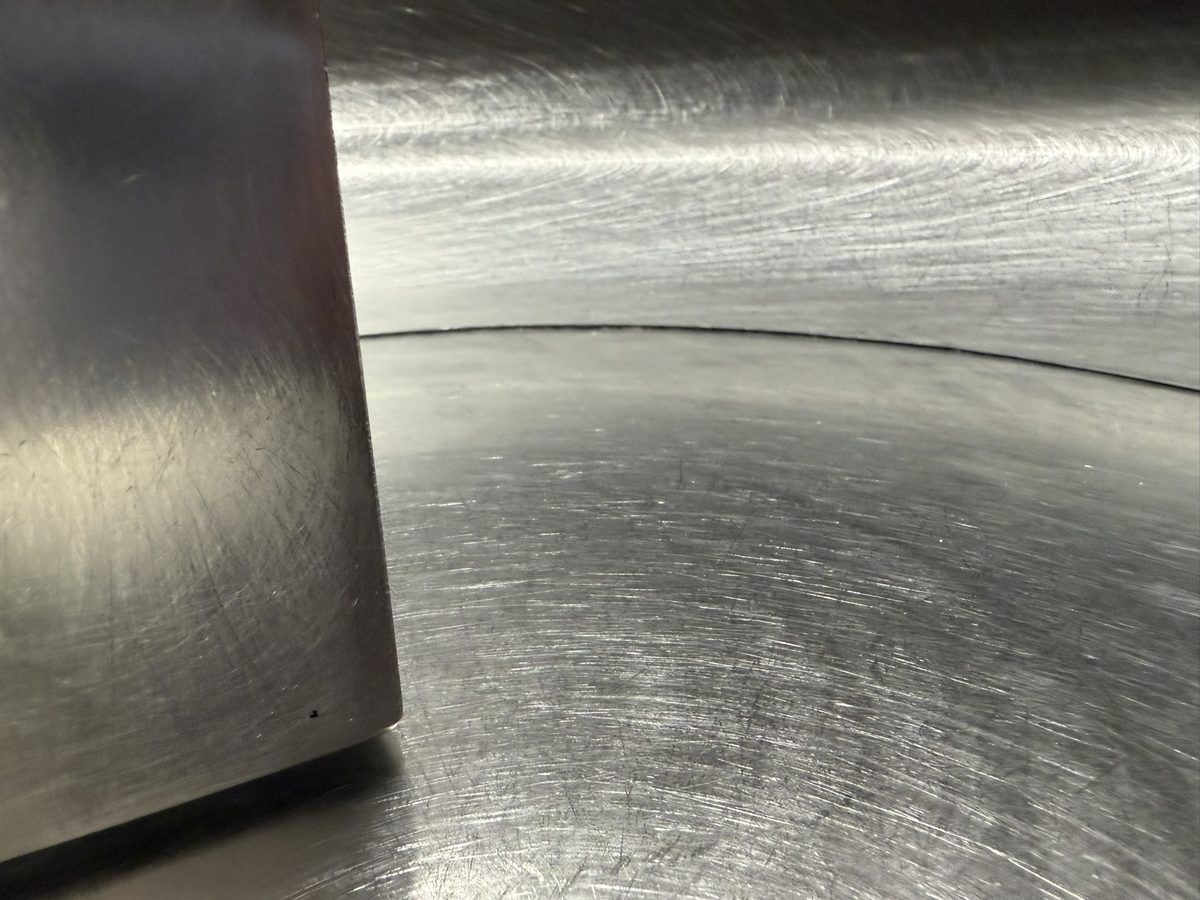

Interior — split now a visible gap

Interior close-up — gap visible

Interior — split along base join

Underside — severe dough and water leakage
